Function begin();

• Purpose: initialization of work with the IR transmitter
• Syntax: begin();
• Options: No.
• Return values: None.
• Note: Called once in setup code.
• Example:

Function send();

• Purpose: Data transfer.
• Syntax: send(DATA [, HOLD ]);
• Options:
  • DATA - code, such as uint32_t, that needs to be transmitted;
  • HOLD - an optional parameter, type bool - indicating that it is necessary to transmit not only the code, but also retry packets. The parameter makes sense if the function is called while the button is held down.
• Return values: None.
• Note: If the function is called without the HOLD parameter, or it is equal to false, then the function, each time it is called, will transmit the specified code once. If the function is called with the HOLD parameter equal to true, then the function debounces the button and sends retry packets (at the interval specified in the protocol) when it is held.
• Example:

Function protocol();

• Purpose: Setting the data transfer protocol.
• Syntax: protocol(STRING);
• Options:
  • LINE - consisting of 25 protocol characters + end-of-line character. This string can be obtained by calling the function of the same name, without parameters, for the receiver.
• Return values: bool - the string contains correct protocol data or not.
• Note: The function sets the communication protocol, so the IR transmitter can imitate the signals of conventional remotes. After calling this function, data transmission by the send() function will be carried out using the new protocol. The default data transfer protocol corresponds to the “Car mp3” remote control.
• Example:

Frequency variable:

• Value: Sets the carrier frequency of data transmission in kHz;
• Data type: uint8_t;
• Note: If the variable is not assigned a value, then the transmission is carried out at the frequency specified in the protocol. If you specify a value of 0, then data will be transmitted without modulation.

Application:

• control of robots, moving, flying and floating models, household and specialized appliances.
• turning on/off lighting, heating, ventilation, watering, etc.
• opening/closing doors, blinds, roof windows, vents, etc.

Every home has a TV remote control, or other remote control (remote control). This device allows you to remotely control any device, which is very convenient. There is no need to waste precious calories and make unnecessary movements. If you have some kind of device and would like to control it from a distance, then you can do remote control this device. If you wish, you can also make a remote control with your own hands, but this is not necessary and that's another story. Why might you need remote control?! - it's simple:

Laziness is a quality that makes one make great efforts to reduce the overall energy costs.

For the first time, remote control in action was shown to the world by inventor Nikola Tesla; in 1898, at an exhibition in Madison Square Garden, he presented a radio-controlled boat called “teleautomatic”. Today, this technology has become widespread, only more different ways transmission of commands (communication channel).

The main communication channels include:

• Radio channel
• Ultrasonic
• Infrared

In this article we will talk about controlling the device with an infrared remote control. Infrared radiation - electromagnetic radiation, occupying the spectral region between the red end of visible light and microwave radiation. Infrared radiation is not visible to the human eye, but can be seen with a camera or video camera. This is often how they check the functionality of the TV remote control at home.

How long ago old job I took the remote control and the “peephole” (IR receiver) from the security system that was being written off, it lay idle for a long time and finally I got around to checking it in operation.

Having disassembled this receiver, I saw some trick; in this “eye” 4 IR receivers were soldered together. This was done in order to receive IR waves from four sides. And it’s convenient, you don’t need to limit yourself to a certain reception angle.

I also sketched out a similar circuit with four receivers, in case I need it. I used TSOP1836 IR receivers, but you can use others. To ensure 360-degree reception, you need to select appropriate IR receivers (with a wide reception angle) and place them as close as possible to each other. I didn't notice any reception problems with my receivers. I also added it to the attachment printed circuit board and arrangement of elements.

To process commands I will naturally use arduino uno; I can use an IR receiver
TSOP34836 (has a high reception range, but is more expensive) or TL1838. You can take any IR remote control, even from a TV. Well, if you need your own remote control, you can buy a kit for arduino.

Principle of operation:
When you press a button on the remote control, it sends the button code to infrared light, after which the receiver receives this button code and sends it to the actuator, which, depending on the button, will perform a certain action.

You can also use infrared waves to transmit information over a short distance. To transfer your commands or information, you can use a second arduino with an IR transmitter. But the speed of such transmission is very slow. The advantages of the infrared channel include insensitivity to electromagnetic interference.

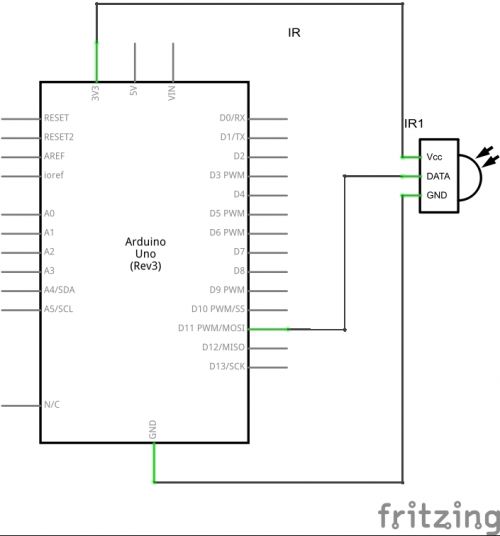

To receive arduino IR signals, we will connect the IR receiver as follows:

Please note that the location of the receiver legs may vary.

The receiver has 3 legs, “+” and “-” power supply (mainly voltage 3.3-5V) and the data leg is the one that transmits information to the device (in our case, arduino). The supply voltage for TSOP34836 is 2.7-5.5 volts. I will use 5 volts from the standard arduino output.

Well, of course you need firmware for arduino. The operation algorithm will be as follows: when you press the top button arduino remote control turns on the relay, and when pressed again turns it off. Using this relay, you can power, for example, the backlight, but it is not necessary to program the button press on the relay, you can output a command to the computer or perform a certain operation in arduino, etc.
To simplify the work, we will use a ready-made library. Firmware code:

#include int RECEIVE_PIN = 11;//receiver pin int RELAY_PIN = 3;//relay contact IRrecv irrecv(RECEIVE_PIN);//assign receiver pin decode_results results;//received data

void setup() (
Serial.begin(9600);
irrecv.enableIRIn(); // turn on the receiver
pinMode(RELAY_PIN, OUTPUT); // configure the relay for output
digitalWrite(RELAY_PIN,HIGH); //set the value high
}

void loop() (
if (irrecv.decode(&results)) (//if data is received
Serial.print("0x");
Serial.println(results.value, HEX);//output the received message to the terminal
if ((results.value == 0x8FF40BF) ||(results.value == 0xD72040BF)) digitalWrite(RELAY_PIN, !digitalRead(RELAY_PIN));//if the button code is 0x8FF40BF or 0xD72040BF, change the relay state to the opposite
delay(200); // delay from double triggering
irrecv.resume();// Get the next value
}
}

Let me explain a little with the sketch:

The resulting value is compared with "0x8FF40BF" and "0xD72040BF" - these are button codes in hexadecimal. Two meanings only because I use two remote controls with unique codes.

Standard procedure for digital pin recording except for "!digitalRead(RELAY_PIN)". Sign "!" stands for inversion, in our case the inversion of the state of the digital output "RELAY_PIN".

These lines output all received codes to the terminal. IN work program this is unnecessary, but you need to find out required code one button or another. That is, first we load the sketch into arduino, go to the terminal and by clicking on the button we get the desired code.

Also in the IRremote library there are several different examples, which may be useful.

In the attachment to the article:

• sketch for arduino


• PCB for 4 sensors

Today's article will look at connecting the TSOP34836 IR receiver to an Aduino UNO board. For these purposes, you can use any receiver you have that is compatible with your remote control in frequency. The assignment of the pins is shown in the figure.

1. Vout – receiver output.
2. GND – “ground”, common wire.
3. Vcc – power supply.
Data transmission from the IR remote control to the receiver is carried out according to the RC5 protocol, which is a sequence of pulses. The connection is made according to the following diagram.

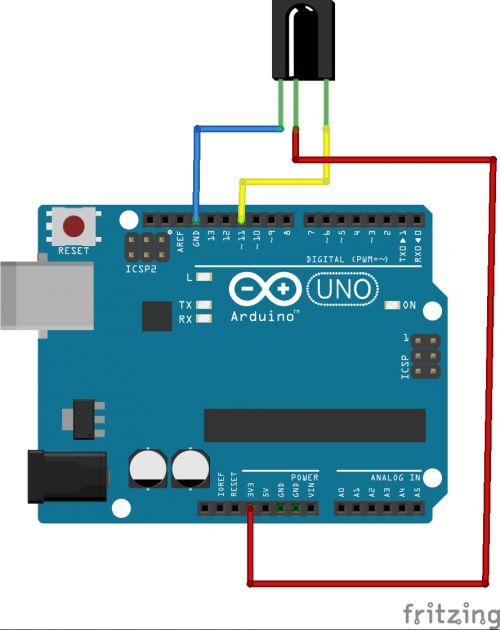

And having collected, we get something like this:

To process the data transmitted by the remote control, we use the IRremote library, this library is attached to the article. Paste the following code:

#include "IRremote.h" IRrecv irrecv(11); // Specify the pin to which the receiver is connected decode_results results; void setup() ( Serial.begin(9600); // Set COM port speed irrecv.enableIRIn(); // Start receiving ) void loop() ( if (irrecv.decode(&results)) // If data has arrived ( Serial .println(results.value, HEX); // Send the received data to the console irrecv.resume(); // Accept the following command ) )

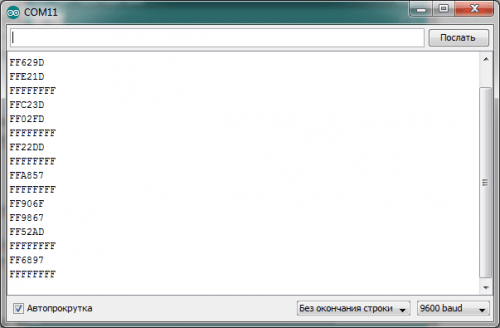

Now in the COM port console you can see the code of the pressed key in HEX.

That's all, now you can use this circuit in your devices. Below is an example of one practical applications IR receiver.

As a demonstration, I will show you how to control the servo using the IR remote control.

Device diagram:

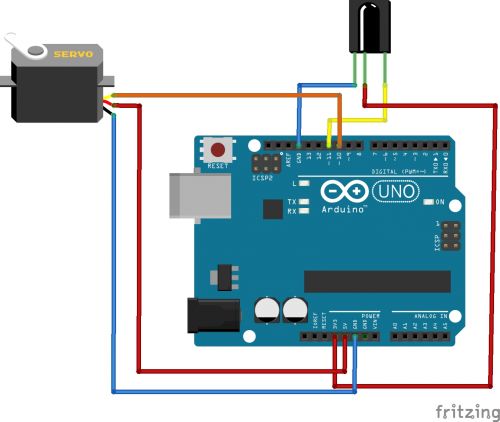

This is what it should look like:

To operate the device we use the following code:

#include "Servo.h" #include "IRremote.h" IRrecv irrecv(11); decode_results results; Servo servoMain; int servPoz = 90; //Initial position of the servo int lastPoz = 0; void setup() ( irrecv.enableIRIn(); servoMain.attach(10); // Servo is attached to pin 10 servoMain.write(servPoz); ) void loop() ( if (irrecv.decode(&results)) ( int res = results.value; Serial.println(res, HEX); if(res==0xFFFF906F) // If the "+" button is pressed ( lastPoz=res; servPoz++; servoMain.write(servPoz); ) else if(res== 0xFFFFA857) // If the "-" button is pressed ( servPoz--; lastPoz=res; servoMain.write(servPoz); ) else if(res==0xFFFFFFFF) // If the button is held ( if(lastPoz==0xFFFF906F) servPoz++; // Hold "+" if(lastPoz==0xFFFFA857) servPoz--;// Hold "-" servoMain.write(servPoz); ) irrecv.resume(); delay(100); ) )

The remote control used is some kind of Chinese, when you press “+” the servo rotates in one direction, when you press “-” it rotates in the other.

An IR receiver and infrared remote control are the most common and easiest way to control electronic equipment. The infrared radiation spectrum is not visible to the human eye, but it is perfectly received by IR receivers that are built into electronic devices. Arduino ir remote modules are used to control various equipment in line of sight.

The widespread use of IR emitters has become possible due to their low cost, simplicity and ease of use. IR radiation lies in the range from 750 to 1000 microns - this is the closest part of the spectrum to visible light. In the region of infrared radiation, the optical properties of various materials can change. Some glasses, for example, become opaque to IR rays, while paraffin, on the contrary, is transparent in the IR spectrum.

Radiation is recorded using special photographic materials, on the basis of which receivers are made. In addition to heated bodies (the Sun, incandescent lamps or candles), the source of infrared radiation can be solid-state devices - IR LEDs, lasers. Radiation in the infrared range has a number of features that make them convenient to use in remote controls:

• Solid state emitters (IR LEDs) are cheap and compact.
• Infrared rays are not perceived or detected by the human eye.
• IR receivers are also cheap and small in size.
• Low interference since the transmitter and receiver are tuned to the same frequency.
• Absent Negative influence on human health.
• High reflectance from most materials.
• IR emitters do not affect the operation of other devices.

The remote control works as follows. When the button is pressed, the signal is encoded in infrared light, the receiver receives it and performs the required action. Information is encoded as a logical sequence of bursts of pulses with a certain frequency. The receiver receives this sequence and demodulates the data. To receive a signal, a microcircuit is used, which contains a photodetector (photodiode), amplifiers, band pass filter, a demodulator (a detector that allows you to highlight the signal envelope) and an output transistor. It also has filters – electrical and optical. Such devices operate at a distance of up to 40 meters. The IR method of data transmission exists in many devices: in household appliances, industrial equipment, computers, fiber optic lines.

IR receiver Arduino

To read the IR signal you will need the Arduino board itself, a breadboard, an IR signal receiver and jumpers. There are a huge variety of different receivers, but it is better to use TSOP312 or others suitable for Arduino. Data from the remote control to the receiver can be transmitted via the RC5 or NEC protocol.

To determine which leg belongs to what, you need to look at the sensor from the receiver side. Then on the receiver the central contact is ground, on the left is the output to the microcontroller, on the right is power.

For convenience, you can use ready-made IR receiver modules.

Connecting the IR receiver to Arduino

The IR receiver outputs are connected to the Arduino to the GND, 5V and digital input ports. The diagram for connecting the sensor to the 11th digital pin is shown below.

This is what the circuit with the infrared receiver module looks like:

Libraries for working with IR

To work with IR devices, you can use the IRremote library, which simplifies the construction of control systems. You can download the library. After downloading, copy the files to the \arduino\libraries folder. To connect to your library sketch, you need to add the header file #include .

To read information, use the IRrecvDumpV2 example from the library. If the remote control already exists in the list of recognized ones, then scanning is not required. To read codes you need to run ARduino environment IDE and open the IRrecvDemo example from IRremote.

There is a second library for working with IR signals - this is IRLib. It is similar in functionality to the previous one. Compared to IRremote, IRLib has an example for determining the frequency of an IR sensor. But the first library is simpler and more convenient to use.

After loading the library, you can start reading the received signals. The following code is used for this.

The decode_results operator is needed to assign the variable name results to the received signal.

In the code you need to rewrite "HEX" to "DEC".

Then, after loading the program, you need to open the serial monitor and press the buttons on the remote control. Various codes will appear on the screen. You need to make a note indicating which button the received code corresponds to. It is more convenient to record the obtained data in a table. This code can then be written into the program so that the device can be controlled. The codes are written into the memory of the Arduino EEPROM board itself, which is very convenient, since you don’t have to program the buttons every time you turn on the remote control.

It happens that when loading a program, the error “TDK2 was not declared In his scope” is displayed. To fix it, you need to go to Explorer, go to the folder in which the Arduino IDE application is installed and delete the files IRremoteTools.cpp and IRremoteTools.h. After this, you need to reload the program onto the microcontroller.

Conclusion

Using Arduino ir remote makes life easier for the user. Can act as a remote control mobile phone, tablet or computer - you just need special software for this. Using Arduino you can centralize all control. With one button on the remote control you can perform several actions at once - for example, turn on the TV and Blu-Ray at the same time.

The IR Receiver module in combination with an IR remote control will allow you to easily implement remote control of the Arduino board.

It is nothing more than a VS1838B IR receiver with the manufacturer’s recommended harness installed on the board.

To work with this module out of the box, you need a remote control with a frequency of 38 kHz.

The advantage of this board is the push-in connector, which allows you to replace the IR receiver with another one operating at the frequency required for your project without soldering.

Main technical characteristics:

Supply voltage: 2.7 - 5.5V

Modulation frequency: 38kHz

Temperature range: - 20 ... + 80°C

Interface: Digital

Connecting to Arduino

The module is equipped with a three-pin 2.54mm connector

: connects to GND pin

: connects to +5V output

: connects to digital pin (D2 in example)

An example of working in the Arduino environment

To work with this module you need to install the IRRemote library

Download, unpack and put it in the libraries folder in the Arduino folder. If the Arduino IDE was open at the time of adding the library, reboot the environment.

Reading remote control buttons

To read the remote control readings, fill in the sketch below. It will output the encoding of the pressed buttons to the port.

As an example, we will use the remote control, as in the picture, because This type of remote control is included in the set

You can read about the differences in the operating logic of various remote controls in the original article from a member of our community under the nickname

Sample code:
